Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Fri Jun 03, 2011 6:40 pm

I have Randy at Jimmy's 4x4 in Cortez CO building me a Promod rock racer. The Chassis is about 75% complete.
Randy will be updating the photobucket with build pics.
http://s179.photobucket.com/albums/w309/RODDZOMBIE/2-1st-175%20PM-Tucson%20Dave/

Ballistic 14bolt shave complete.

Twisted Customs Grand Cherokee fiberglass hood mocked up.

Front of chassis

rear of chassis
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby hugh jeffner » Wed Jul 06, 2011 8:21 pm

Slacker, get us some updates! :p
if i'd of known we were making history, i'd have paid closer attention (some dude in dust to glory)
User avatar
hugh jeffner
Supporting Member
Supporting Member

Posts: 1043
Joined: Wed Feb 02, 2005 12:45 pm
Location: Aaron's mom's house

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Thu Jul 07, 2011 8:15 am

Randy hasent sent any updated pics, thats all I have.

Were waiting on the ballistic shocks, they take 4 weeks for the custom bypass shocks. They may be ready this Friday, then Ill drive up to cortez to drop off the rest of the parts.

Decided to mount the radiator up high behind the seats, a rear firewall and mounting the fuel cell right behind the seats. This leaves more room in the back for actionpacker and cooler mounting.

Ill get lots of pictures when I go up there in the next week.
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby G-Eagle » Sat Jul 09, 2011 8:29 pm

Dave, that thing is bad azz! Enjoy your trip up to colorado, looking forward to more pic's!!!
78 CJ7 V8 700R4, 3.06:1 Tera low, 2x stik, X'd up 609 front -ARB, N9 rear- Spool, 4-link, 513's
2007 Dodge 4x 2500 diesel
User avatar
G-Eagle
Mud Terrains
Mud Terrains

Posts: 332
Joined: Mon Jun 11, 2007 3:44 pm
Location: Vail,Az

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Sun Jul 10, 2011 9:50 am

Our planned date of the 16th is changing, Randy has a race that weekend. The shocks are due early next week.

Yea I will be keeping the new trail ready wheels and Pitbull tires from the jeep.

We got some more parts in and Randy put up some updated pictures.

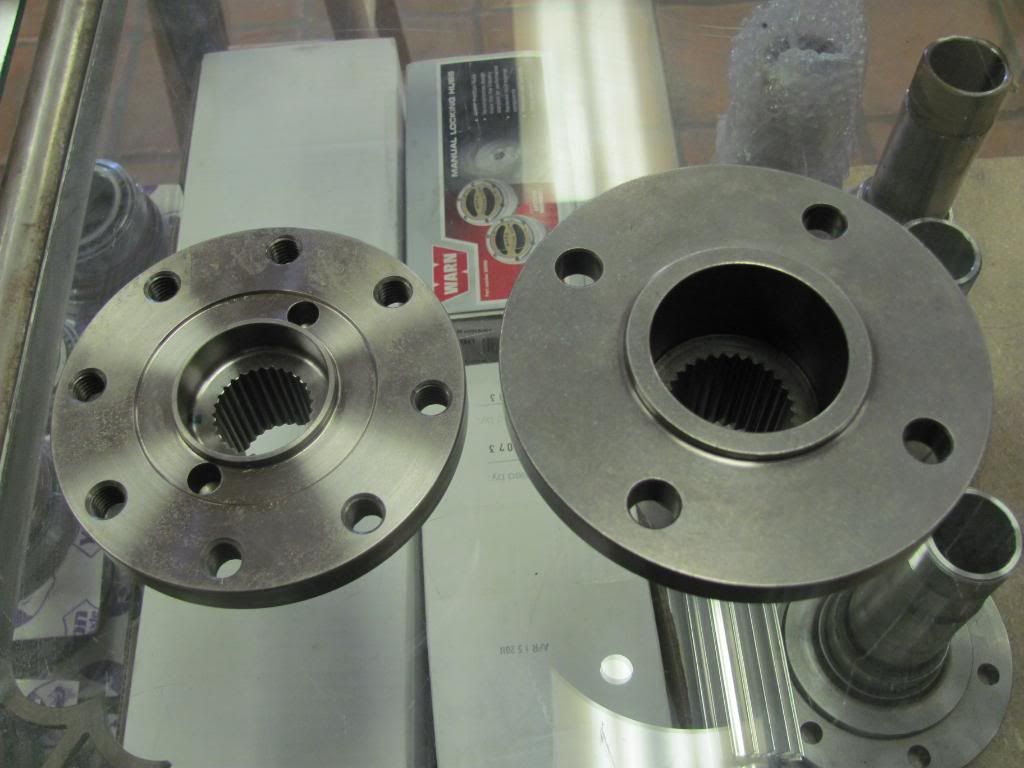

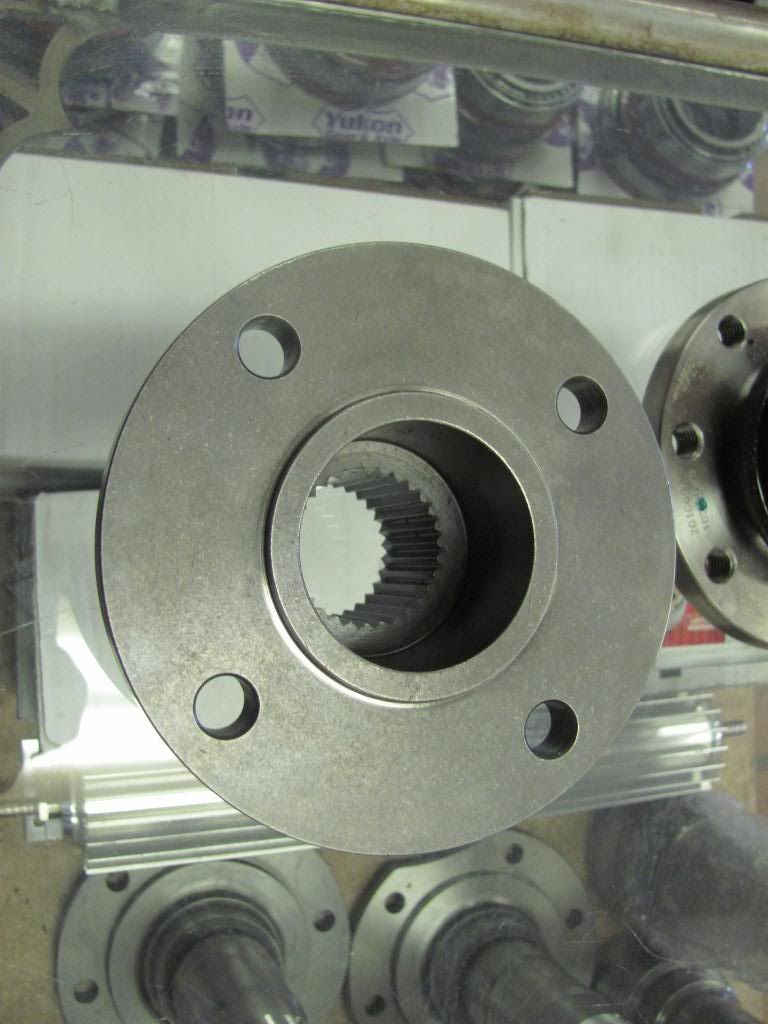

1410 flanges for the 14Bolt, D60 and Altas outputs. Ive broke yokes from rock grinding, with these flanges I should not need a 14Bolt pinion guard and will hold up better to rock grinding.

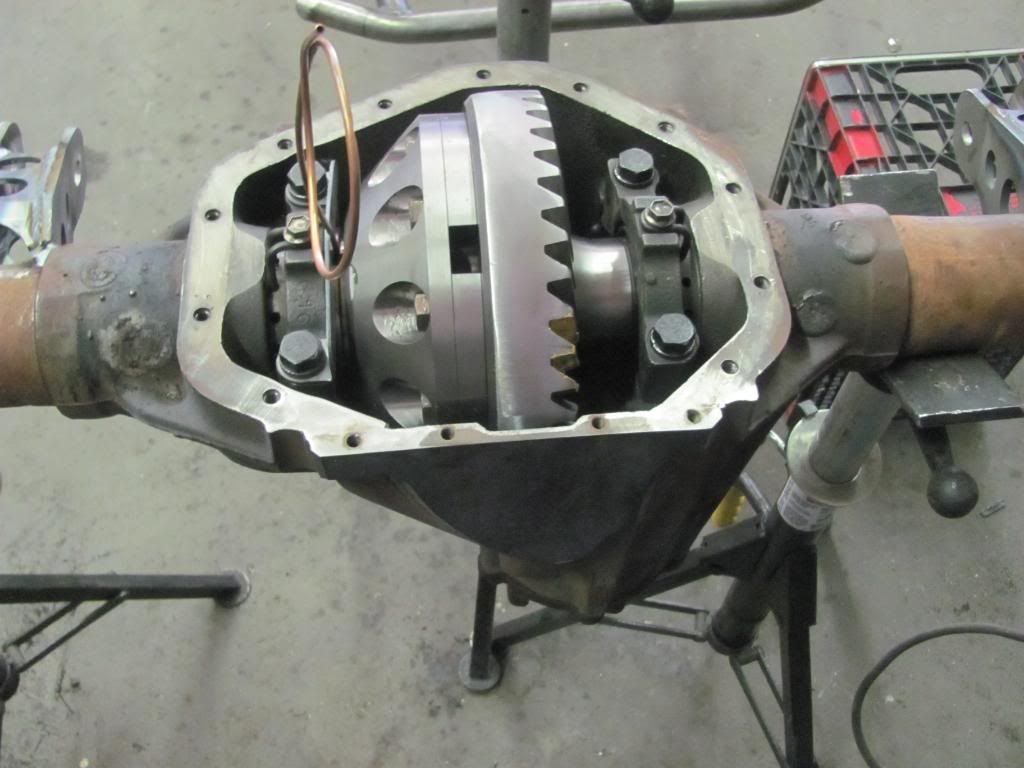

14Bolt ring gear turned down for the shave with ARB installed. 5.38 gears for now.

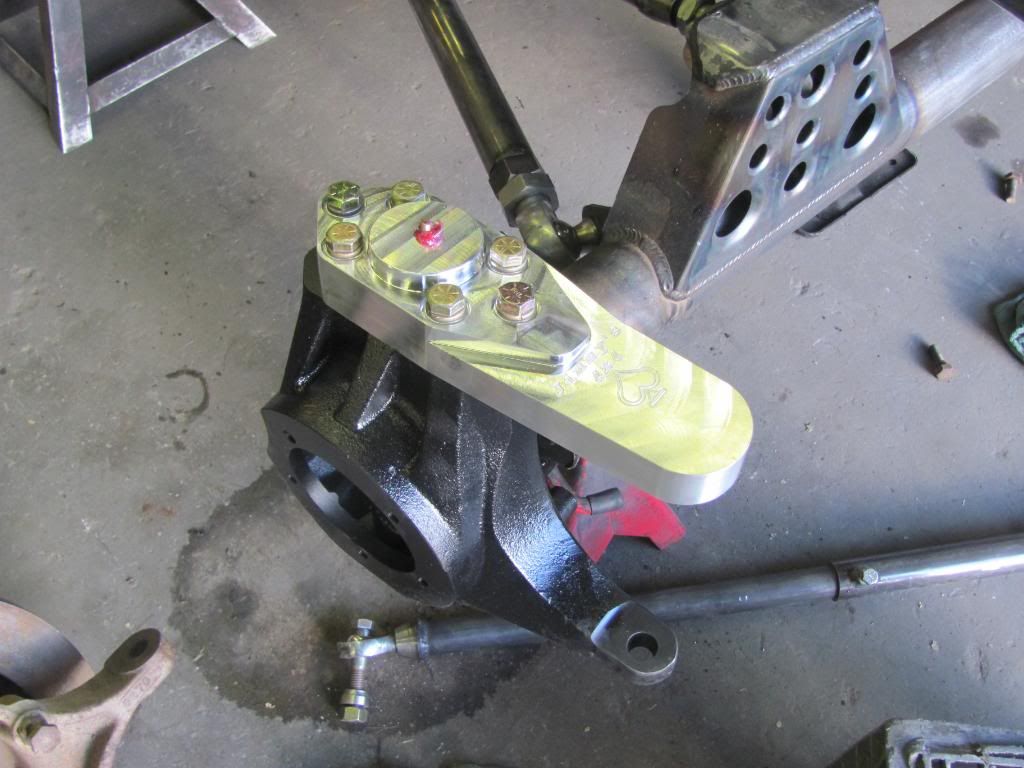

D60 with Upgraded outer knuckles and Jimmy's high steer arms.

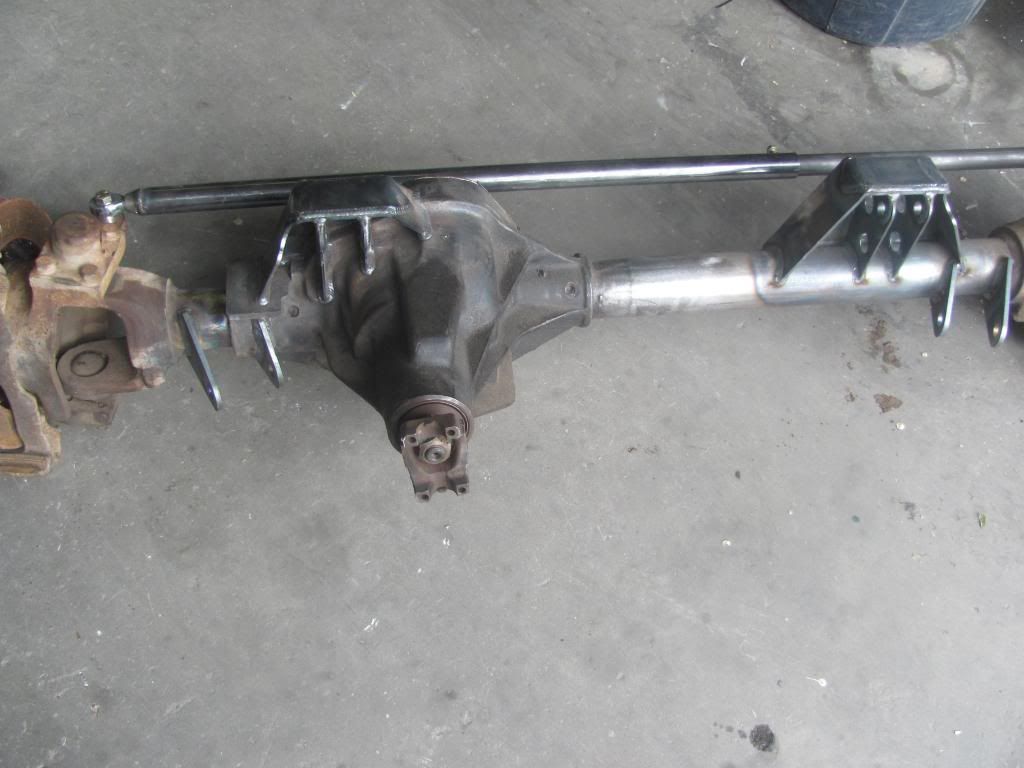

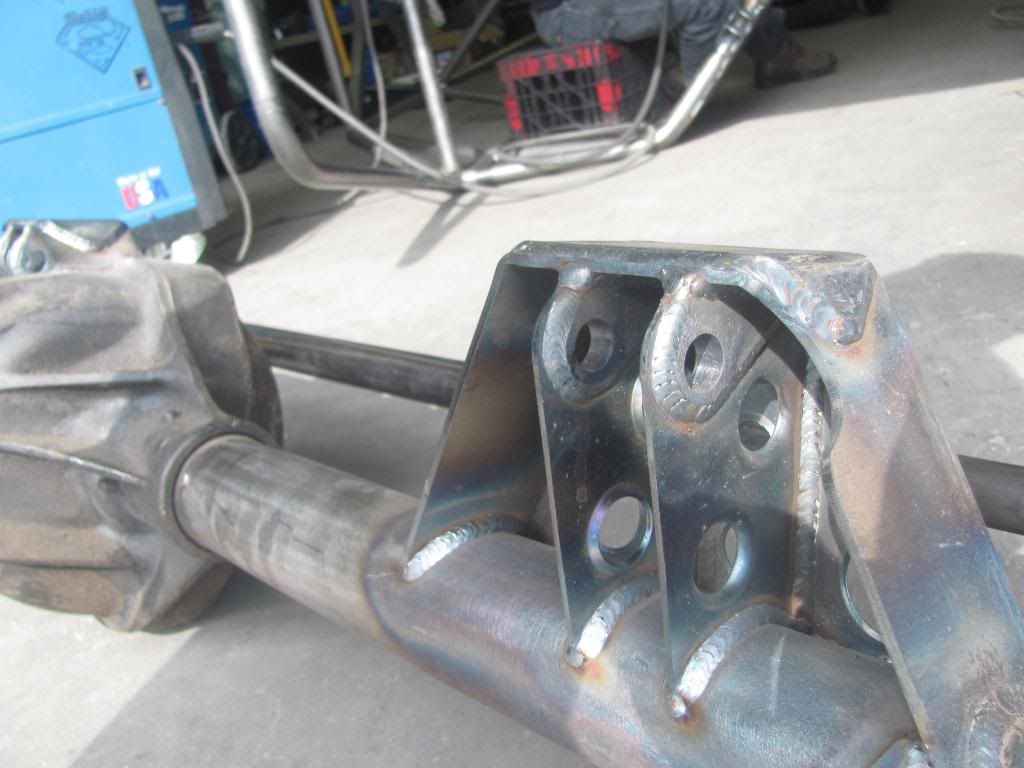

D60 suspension brackets

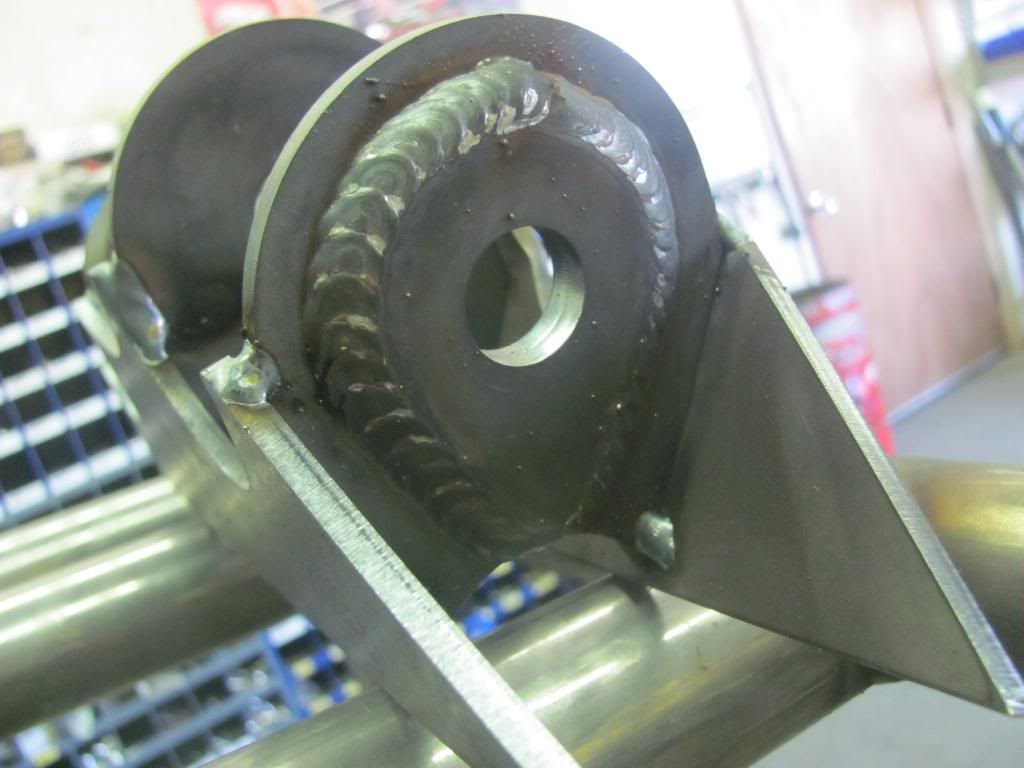

Chassis side lower link tabs
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Sun Jul 10, 2011 9:51 am

Chassis Belly with suspension tabs mounted

Rear chassis tubes with rear bumper tube.

Lots of space for fuel cell, storage and radiator

Radiator and 22Gal fuel cell
Image[/IMG]

AN fittings on radiator


SWAG action packer and cooler mounted behind fuel cell
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Sun Jul 10, 2011 9:51 am

The LQ4 6.0 with an LS1 intake turned around rear facing. Will be using the stock exhaust manifolds for now and all internals will be stock.

The TH400 will have a trans go shift kit but will be the regular auto valve body for now. has a 2200 stall torque converter with anti balloon plate.
Atlas 4 speed

The grill was glassed in with the hood

It will have a removable front bumper to meet WEROCK rules
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby CHEVYNTOY4X4 » Sun Jul 10, 2011 10:20 am

damn that thing is F***in sweet :cheers:
ITS NOT ABOUT HOW FAR YOU GO ITS WHAT YOU BREAK ALONG THE WAY

SHITLLFABOUT ind.

86 yota sas'd

Keystone Crawler
User avatar
CHEVYNTOY4X4
Supporting Member
Supporting Member

Posts: 1092
Joined: Wed Apr 04, 2007 7:14 pm
Location: glendale

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby scrambler 82 » Sun Jul 10, 2011 6:39 pm

Must be nice to have all that money Dave :moon: Really it looks badass!
D60 rear, 60 front 3 linked, spools, 5.38's and 39.5 IROK's, auto and a little 6 banger!
User avatar
scrambler 82
Top Dawg
Top Dawg

Posts: 1818
Joined: Thu Jan 19, 2006 7:29 pm
Location: Kearny,Az

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Sun Jul 24, 2011 10:39 am

scrambler 82 wrote:Must be nice to have all that money Dave :moon: Really it looks badass!

Its my sugar momma.

Sold the jeep on Friday in colorado and went to Jimmy's to take pics and feel the seat, shifter and pedal positions.
Dropped off all the ballistic shocks only short one set of bumps ill mail out this week.
Its comming along nice.

Joel made a spaceship.
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Sun Jul 24, 2011 10:41 am


User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby POSJ » Tue Jul 26, 2011 11:28 am

looks ghey... :flipoff:
98' XJ on 35's
POSJ
Training Wheels

Posts: 95
Joined: Thu Apr 14, 2011 5:54 pm

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Sat Aug 20, 2011 5:13 pm

If your into Ghey keep scrolling.

User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby DUMASS » Sun Aug 21, 2011 12:50 pm

Ashman wrote:If your into Ghey keep scrolling.

poor lemmywinks......too many holes :flipoff:
PVT Martin Treptow wrote:America must win this war. Therefore, I will work, I will save, I will sacrifice, I will endure, I will fight cheerfully and do my utmost, as if the issue of the whole struggle depended on me alone.


U.S. Supreme Court wrote:It is not the function of our Government to keep the citizen from falling into error; it is the function of the citizen to keep the Government from falling into error.
American Communications Association v. Douds, 339 U.S. 382,442
User avatar
DUMASS
...DICK

Posts: 1557
Joined: Fri Nov 21, 2003 7:16 pm
Location: The Dumbest City in the Whole Country

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby hugh jeffner » Tue Aug 23, 2011 8:38 pm

that pedal placement looks a bit sketch. do you brake with your left foot already?
if i'd of known we were making history, i'd have paid closer attention (some dude in dust to glory)
User avatar
hugh jeffner
Supporting Member
Supporting Member

Posts: 1043
Joined: Wed Feb 02, 2005 12:45 pm
Location: Aaron's mom's house

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Tue Sep 06, 2011 11:51 am

Its almost ready to come home, about 1week of work left but I wont be able to pick it up till the end of the month.


front bump and finished bumper
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Tue Sep 06, 2011 11:52 am

The rear body panels are going to look great but wont run them for most hard trail wheeling.

trimmed to fit tires
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Tue Sep 06, 2011 11:56 am

antirock sway bar mounted and fill neck installed.
rear bump landing pad


Might get one more batch of update pics before I pick it up.
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Mon Oct 17, 2011 5:05 pm

I forgot to update you guys. We went up to Cortez two weeks ago and picked up the Jimmys, but we also were told by our land lord the rental house were in is selling and need to move out, We have a house lined up now, still staying in Vail south of I10.

catch you up on some pics.
Driving around the lot near the shop with no coils on the Coilovers.


Since those pics I painted the hood and all the panels green, have 3 of the 4 corners with springs installed and have painted around the coilover shock mounts. Should get the last corner done this week and take it for the first test drive.
User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby scrambler 82 » Mon Oct 17, 2011 7:41 pm

I don't see the Harley, what's up with that Dave?
D60 rear, 60 front 3 linked, spools, 5.38's and 39.5 IROK's, auto and a little 6 banger!
User avatar
scrambler 82
Top Dawg
Top Dawg

Posts: 1818
Joined: Thu Jan 19, 2006 7:29 pm
Location: Kearny,Az

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby CHEVYNTOY4X4 » Tue Oct 18, 2011 4:24 pm

that turned out sweet
ITS NOT ABOUT HOW FAR YOU GO ITS WHAT YOU BREAK ALONG THE WAY

SHITLLFABOUT ind.

86 yota sas'd

Keystone Crawler
User avatar
CHEVYNTOY4X4
Supporting Member
Supporting Member

Posts: 1092
Joined: Wed Apr 04, 2007 7:14 pm
Location: glendale

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby AZ J20 » Tue Oct 18, 2011 6:39 pm

fuckn a! Image
steve

'86 J20
SOA, Dana 60's, F/R Lockers
High Steer, Ram Assist
Bunch of Other Stuff
User avatar
AZ J20
Supporting Member
Supporting Member

Posts: 191
Joined: Wed Mar 03, 2004 7:44 am
Location: Tucson

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby Ashman » Thu Oct 20, 2011 8:01 am

I drove it for the first time last night with the coils and nitrogen set. Need to tune the motor and shocks. first coat of Green paint and some hammered paint on the axles and chassis around the shock mounts.

User avatar
Ashman
Site Admin
Site Admin

Posts: 5449
Joined: Wed Nov 27, 2002 11:14 am
Location: Vail, Arizona

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby CHEVYNTOY4X4 » Thu Oct 20, 2011 12:17 pm

:boobies: now its too pretty to go beat
ITS NOT ABOUT HOW FAR YOU GO ITS WHAT YOU BREAK ALONG THE WAY

SHITLLFABOUT ind.

86 yota sas'd

Keystone Crawler
User avatar
CHEVYNTOY4X4
Supporting Member
Supporting Member

Posts: 1092
Joined: Wed Apr 04, 2007 7:14 pm
Location: glendale

Re: Tucson Dave 2011 Jimmy's4x4 ProMod

Unread postby blackd-out-chev » Thu Oct 20, 2011 2:29 pm

:boobies: id beat it like it owed me money....
I'm not racist. I'm a nationalist. A taxpayer with a steady job. If that offends you, maybe you need to get a job and contribute to society or find another flag to seek shelter under.
User avatar
blackd-out-chev
Boggers
Boggers

Posts: 856
Joined: Sun Oct 19, 2008 8:03 pm
Location: UnDeR tHe JeEp
